Sacramento Data
Center Campus

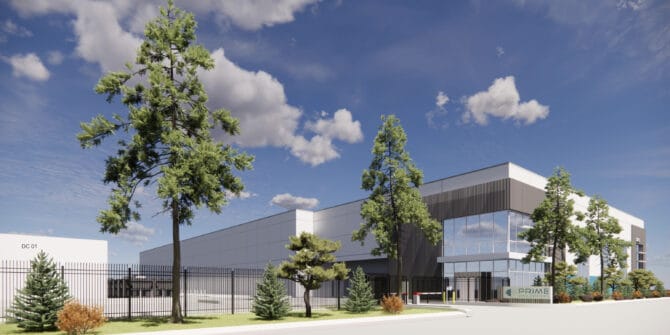

Prime’s Sacramento Data Center is located on 38 acres in McClellan Business Park, less than 90 minutes from the Bay Area with impressive amenities and tax incentives.

sacramento data center real estate development phases

Excellent Disaster
Recovery Site


Outside the 500-year flood plain


Low seismic risk

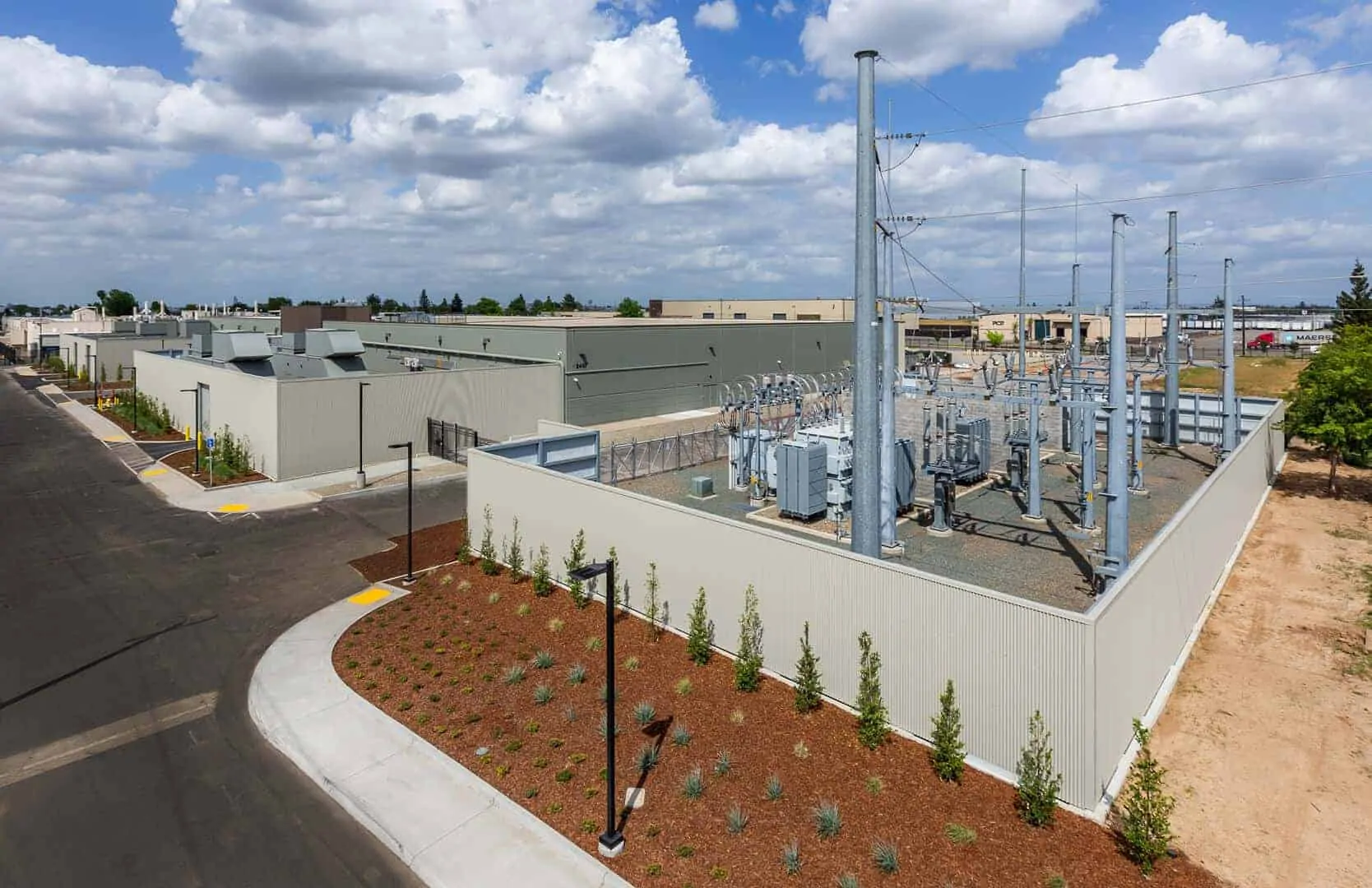

Privately-owned 50 MVA sub-station, expandable to 150 MVA


Affordable, renewable power with 30-50% savings compared to the SF Bay Area


~3ms latency to San Jose and San Francisco

Stability

The Prime Sacramento Campus is the only data center in Sacramento that is outside the 500-year floodplain. And according to the USGS, there is a less than 0.72% probability of a 6.0 magnitude or higher earthquake over the next 30 years, whereas San Francisco has a 89% chance of a 6.0+ earthquake in this period.
USGS earthquake risk map for California, Nevada, and Oregon
greater Sacramento flood plain map

Specifications

  • Sacramento Campus
  • Building One
  • Data Center
  • Power
  • Environmental
  • Connectivity
  • Security & Certifications


Street Address: 3140 Peacekeeper Way



City, State Zip: Sacramento, CA 95652



Proximity: 15 minutes from Sacramento City Center and 90 minutes from Bay Area



Private FBO: Within McClellan Park



Campus Size: 38 acres



Hotel, recreation facilities and service offices on Campus

Floors: 1-single story

Fully rebuilt – completion 2019

Parking: 20 spaces

SFHA Zone: Zone X

Seismic Rating: Zone 1

Outside the 500-Year Flood Plain

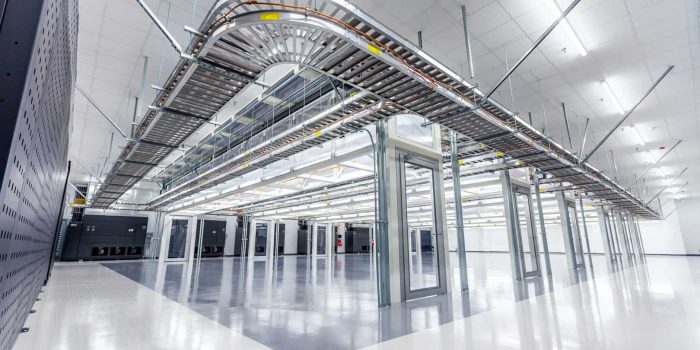

White Space: ~40,000

Space Options: Private data halls 2-4MW and private cages of 400-1000kW

Cabinet Densities: up to 35kW

Floor Type: Slab on grade; 500lbs./s.f.

Column Spacing: 50 feet

Ceiling: Gordon Grid

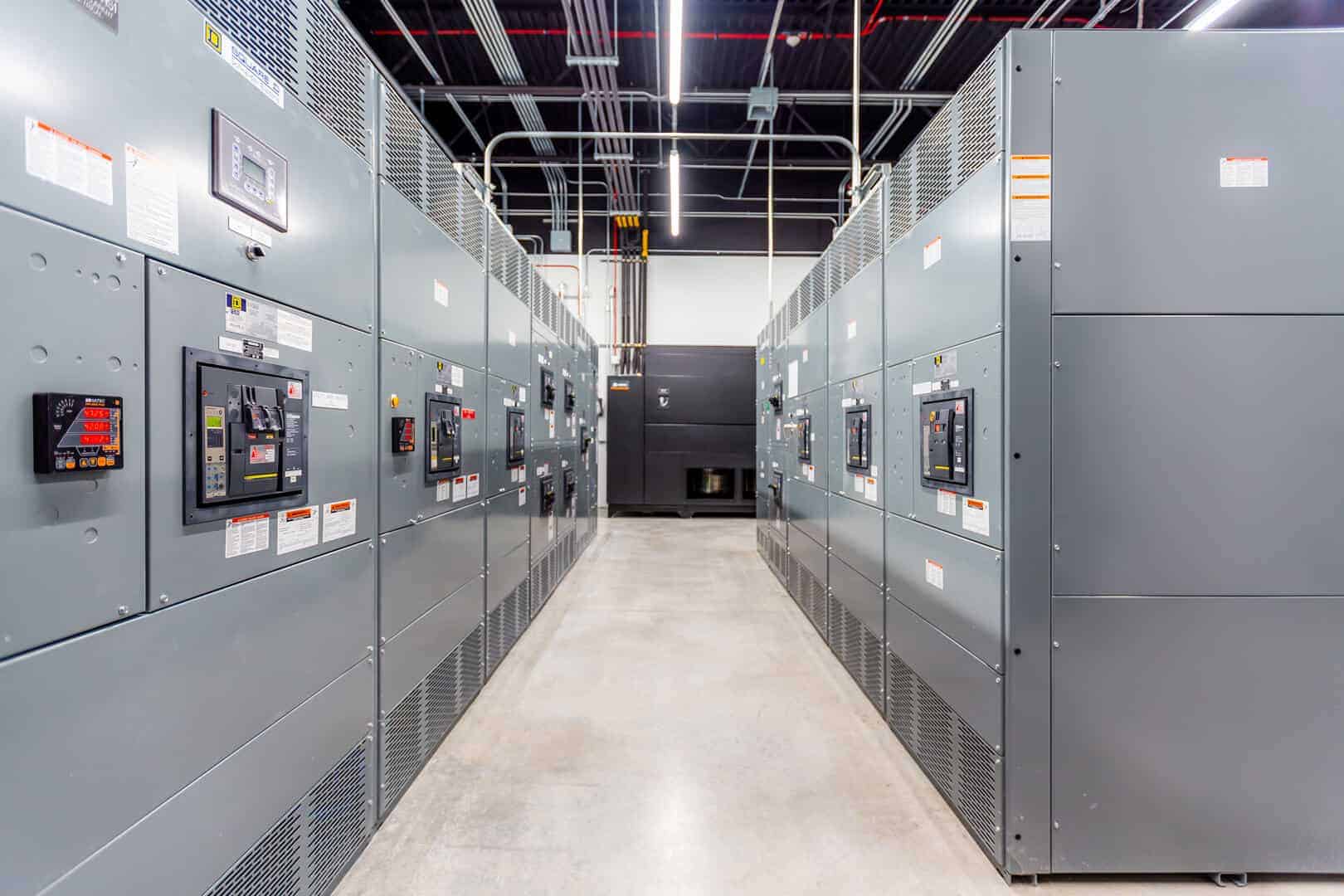

End-to-End power delivery is provided with no single point of failure. All critical components are designed to at least N+1.

UPS Capacity: 8MW

Substation: 50MVA Dedicated On-site owned by Prime – expandable to 150MVA capacity; feed from 3 redundant bulk substations

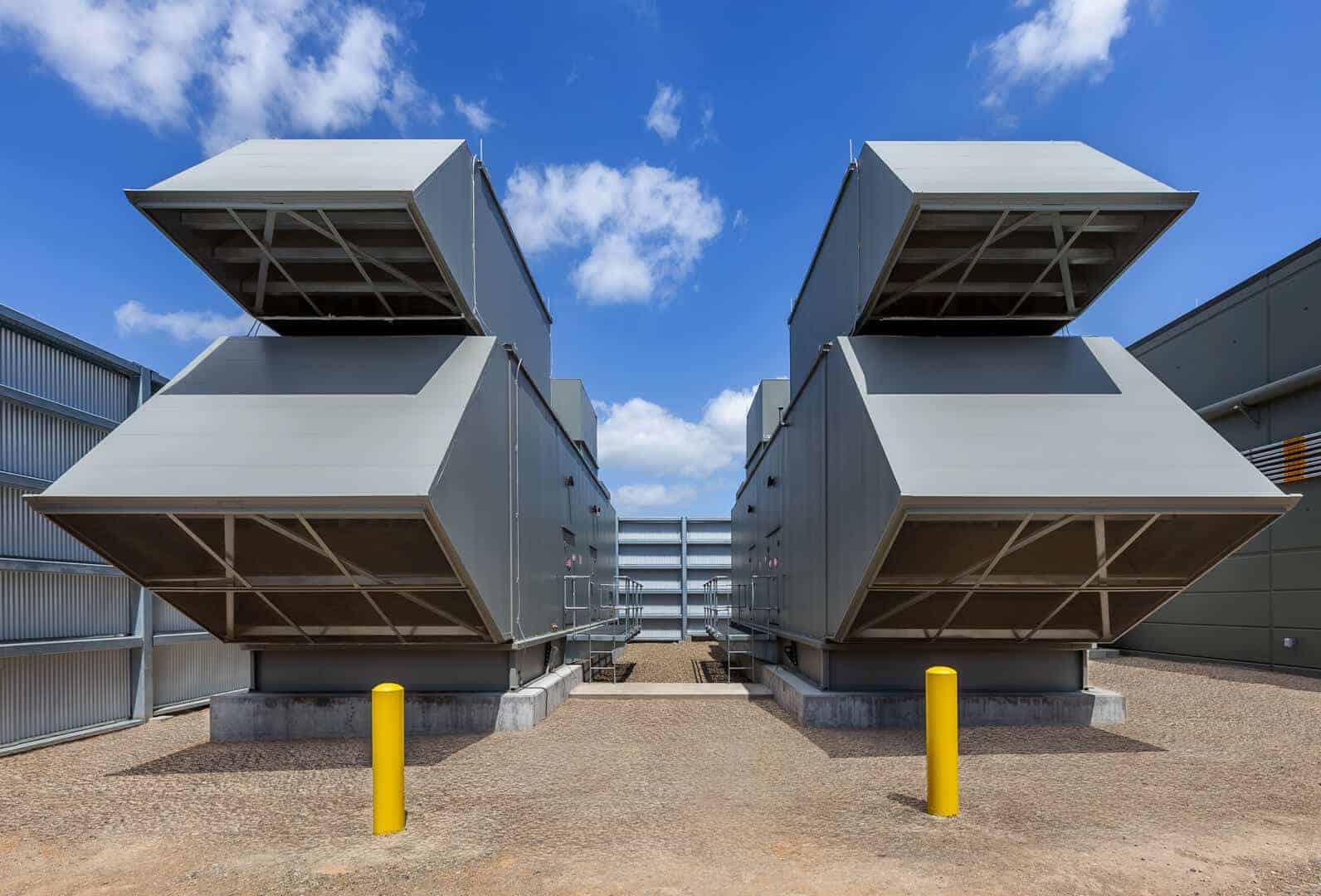

Backup Power Generation: 5 x 3,000kW diesel generators with w/24 Hours Fuel with onsite campus refueling service

A+B Feeds on UPS: Yes

Design P.U.E.: <1.29

Redundant mechanical cooling (N+1) units with economizers to maintain Premises temperature range in accordance with ASHRAE recommended A-1 “Operating Window”.

Economizer: Pumped refrigerant

Heat Containment: Hot-aisle

Fire Detection: VESDA

Fire Suppression: Multi zoned double pre-action dry-pipe system supporting all critical areas

Leak Detection: Yes, within DSE units

Grounding: Telecom grade

Capacity: 10-100Gbps

Carrier-Neutral: Yes – AT&T, Comcast, CenturyLink/Level3, Zayo, Cogent, Consolidated Communications, Wave

Meet-Me-Room (MMR): Yes

Managed Services: Yes

Multiple layers of security including 24/7 onsite perimeter and interior Surveillance Cameras, Biometric Readers, Electronic Key Card Readers and Man-Trap.

In-house Network Operating Center and turnkey BMS system

SOC, HIPPA, SSEA16, PCI compliant

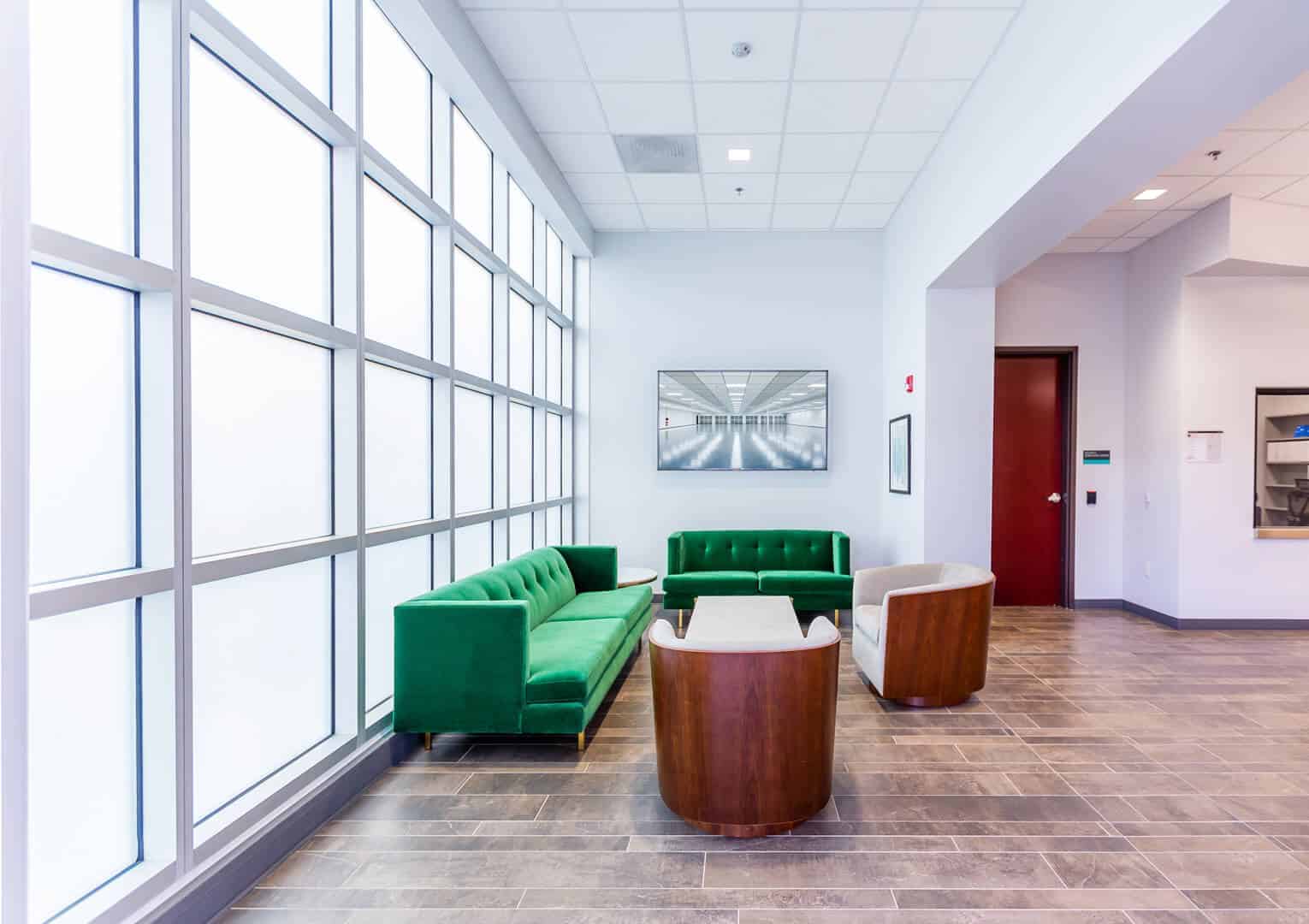

Campus Gallery

Connectivity

This carrier-neutral facility is strategically located on major fiber routes and has physically diverse pathways to multiple Tier1 long haul and metro fiber providers.

2407 AK Street offers direct access to dark fiber, major interconnection sites and on-ramps to major public cloud infrastructure providers.

And with ultra low latency to all of the major West Coast markets, Prime’s Sacramento data center is a smart choice for companies looking at alternatives to the Bay Area.

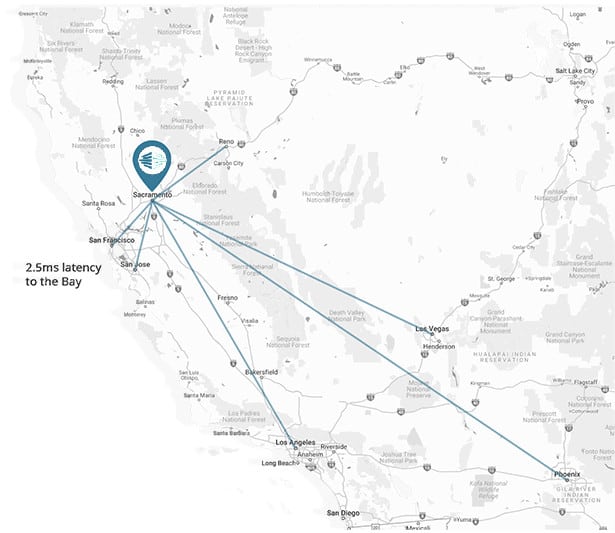

sacramento data center network latency map

Power

Prime’s Sacramento data center accesses 100MW+ of utility power and the ability to deliver power from 100% green energy sources for up to 50% lower than the Bay Area.
