Santa Clara
Data Center Campus

Prime’s newest data center is in the heart of Santa Clara, strategically located on major fiber routes and multiple power feeds with up to 40% lower power rates than other San Francisco Bay Area utilities.

Powered Shell in Silicon Valley

Located in the heart of Silicon Valley, this new Santa Clara data center facility will be delivered as turn-key, or is available as powered shell, with 10 MW of critical power with N+1 configuration and up to 14MW of critical power with N configuration. Excellent sister replication site available in our Sacramento data center.

Construction: Summer 2020
Ready for Move-In: Spring 2021

First floor – 22,900 sq. ft.
Second floor – 25,300 sq. ft.
Third floor – 25,300 sq. ft.

Specifications

  • Santa Clara Campus
  • Building Size
  • Fire Protection
  • Security

Utility: 13.5MVA – Three dedicated 4.5MW utility feeds (option for a fourth feeder)

UPS: N, N+1 & 2N configuration with lithium-ion batteries (Optional)

PDU: N+1 or 2N PDU distribution

Generators: Standby supporting N, N+1 & 2N redundancies

PUE: <1.2 Design Day

Density: up to 35 kW+ per rack

Fuel Storage: 48 hours at full load; multiple <4 hour refueling contracts

BMS Controls: Fully integrated monitoring

Mechanical: High-efficiency economized cooling N+1

Fire Detection: VESDA – Zone configured

Fire Suppression: Dual-interlock pre-action sprinkler system

Seismic Importance Factor: 1.5

Security: PTZ and motion detection camera system coverage with a min 90-day retention; Mantrap entry with anti-tailgating security system; Multi-factor authentication and biometric access and K-rated perimeter fencing

Security: PTZ and motion detection camera system coverage with a min 90-day retention; Mantrap entry with anti-tailgating security system; Multi-factor authentication and biometric access and K-rated perimeter fencing

Connectivity

This carrier-neutral facility is strategically located on major fiber routes and has physically diverse pathways to Tier1 long haul and metro fiber providers with access to new dark fiber routes to 11 Great Oaks.

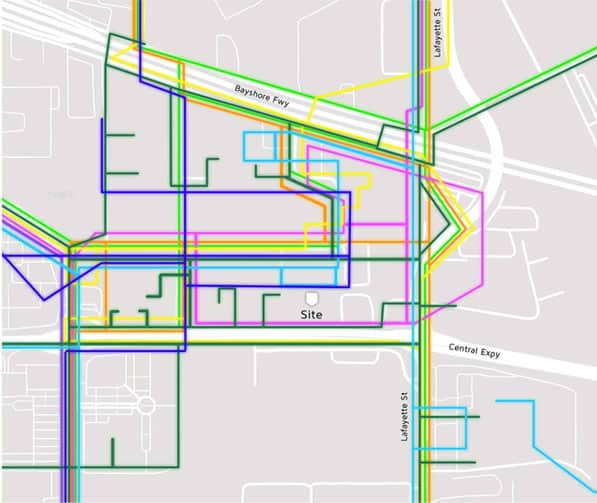

santa clara data center network connectivity map

Talk to Us About Santa Clara

We’re happy to tell you more about our new Santa Clara property. You can also download our 1111 Comstock brochure below.

Learn more about our data centers by contacting us.

If you prefer phone or email to live chat, you can reach us at 415-896-4461 or info [at] primedatacenters [dot] com
